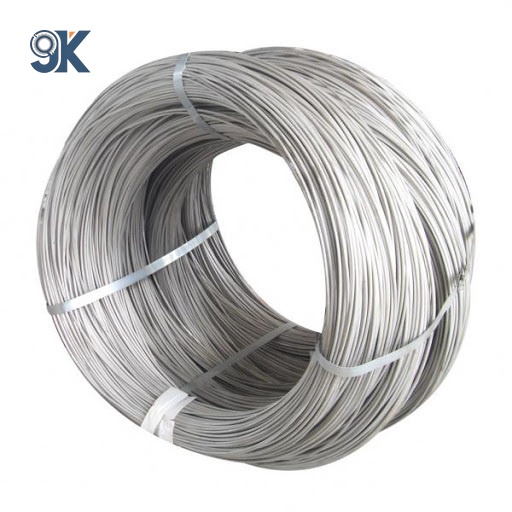

| Product Name | 316L Stainless Steel Wire |
| Standard | ASTM A580, UNS S31603 |
| Material | 316L |
| Technique | Cold drawn, Hot rolled, Cold rolled and Others. |
| Common Size Specs | Diameter range: 0.2mm – 5.5mm | Hot-selling: 0.3mm, 0.8mm, 1.2mm, 2.0mm, 3.0mm Standard coil weight: 50kg / 100kg; custom straight cut wire available |
| Surface Treatment | Bright Annealed BA Finish; Pickled Matte Finish; Soap lubricated drawing surface; Anti-rust oil protective coating |
| Available Material Tempers |
Soft Annealed; Full Hard Temper |
| Origin | China |
| Price Terms | EXW, FOB, CIF, CRF, CNF or others |
| Payment Term | TT, LC, Cash, Paypal, DP, DA, Western Union or Others. |
| Packaging | Bundle, PVC Bag, Nylon Belt, Cable Tie, Standard export seaworthy package or as Request. |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting and Others. |
| Tolerance | ±1% |
| Exported to | UAE, Saudi Arabia; Germany, Poland; Vietnam, Malaysia |
| Core Strengths | Ultra-low carbon formula eliminates grain corrosion after welding without heat treatment Molybdenum component resists saltwater, chloride and weak acid pitting far better than 304 Stable ductility and uniform roundness reduces breakage during automatic mesh weaving Biocompatible composition meets sanitary standards for medical implant accessories Consistent tensile strength maintains elasticity under coastal humid & corrosive working conditions |
| Main Applications | Marine filter mesh, medical precision springs, chemical equipment binding wire, coastal corrosion-resistant hardware, pharmaceutical filtration components, offshore rig fastener raw stock |
If you are looking for professional steel wire suppliers from China, Haiwo is your great choice! Contact us to get latest price list now!
Composition of Stainless Steel
Steel is an alloy of iron and carbon. Stainless steels are steels containing at least 10.5% chromium, less than 1.2% carbon and other alloying elements. Stainless steel’s corrosion resistance and
mechanical properties can be further enhanced by adding other elements, such as nickel, molybdenum, titanium, niobium, manganese, etc.
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | - | 0.08 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 | 4.0~6.0 | - | ≤0.25 |
|
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | - |
|
|
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | - |
|
|
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - |
|
|
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - |
|
|
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | - |
|
|
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 |
|
|
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 |
|
|
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - |
|
|
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 |
| - |
|
|
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 |
|
|
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 |
|
|
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 |
| 1.0~2.0 |
| INCONEL028 | ≤0.03 | ≤1.00 | ≤2.50 | ≤0.030 | ≤0.030 | ≤28.0 | ≤34.0 | ≤4.0 |
| ≤1.4 |
| MONEL400 | ≤0.30 | ≤0.5 | ≤2.00 | - | ≤0.024 | - | ≥63.0 | - |
| ≤34.0 |
| INCONEL800 | ≤0.10 | ≤1.00 | ≤1.50 | - | ≤0.015 | ≤23.0 | ≤35 | 4.0~5.0 | - | ≤0.75 |
