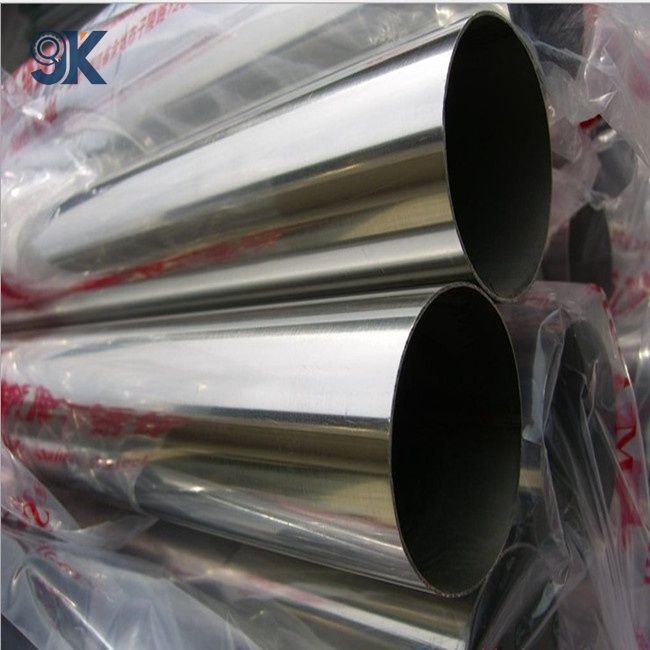

| Product Name | 2205 Duplex Stainless Steel Pipe |
| Standard | ASTM A790, ASTM A789, UNS S32205 / S31803 |
| Material | 2205 Duplex |
| Technique | Cold drawn, Hot rolled, Cold rolled and Others. |
| Common Size Specs | Outer diameter: 6mm–914mm; Wall thickness: 0.5mm–50mm (SCH5S–XXS) Hot-selling sizes: DN50, DN100, DN150, DN200 seamless pipe Standard length: 6m / 12m, custom cutting available Type: Seamless / welded duplex pipe |
| Surface Treatment | Pickled & passivated industrial finish, mechanical polished bright surface, bead-blasted anti-corrosion finish, anti-rust protective packaging |
| Available Material Tempers |
Solution annealed (standard delivery state for stable dual-phase microstructure) |
| Certifications | ISO9001, SGS, RoHS, EN10204 3.1 MTC, NACE MR0175, PED pressure equipment certification |
| Origin | China |
| Price Terms | EXW, FOB, CIF, CRF, CNF or others |
| Payment Term | TT, LC, Cash, Paypal, DP, DA, Western Union or Others. |
| Packaging | Bundle, PVC Bag, Nylon Belt, Cable Tie, Standard export seaworthy package or as Request. |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting and Others. |
| Tolerance | ±1% |
| Exported to | Saudi Arabia, UAE, Kuwait; Norway, Germany; Australia |
| Core Strengths | Dual-phase alloy yields twice the strength of conventional 300-series stainless, allows thinner wall design to cut project cost High PREN value effectively blocks chloride pitting & stress corrosion cracking in seawater/sour oil environments Contains molybdenum & nitrogen to resist sulfur and weak acid erosion for chemical processing Stable mechanical performance under long-term high-pressure cyclic operation Compliant with NACE sour service standards, long service life to lower overall project maintenance expense |
| Main Applications | Oil & gas flow pipelines, seawater desalination piping, chemical high-pressure process tubes, offshore platform fluid lines, heat exchanger tubing, sour well transport pipelines |
If you are in market for high quality ss pipe products, welcome to contact us for best price now!
Composition of Stainless Steel
Steel is an alloy of iron and carbon. Stainless steels are steels containing at least 10.5% chromium, less than 1.2% carbon and other alloying elements. Stainless steel’s corrosion resistance and
mechanical properties can be further enhanced by adding other elements, such as nickel, molybdenum, titanium, niobium, manganese, etc.
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | - | 0.08 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 | 4.0~6.0 | - | ≤0.25 |
|
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | - |
|
|
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | - |
|
|
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - |
|
|
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - |
|
|
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | - |
|
|
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 |
|
|
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 |
|
|
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - |
|
|
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 |
| - |
|
|
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 |
|
|
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 |
|
|
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 |
| 1.0~2.0 |
| INCONEL028 | ≤0.03 | ≤1.00 | ≤2.50 | ≤0.030 | ≤0.030 | ≤28.0 | ≤34.0 | ≤4.0 |
| ≤1.4 |
| MONEL400 | ≤0.30 | ≤0.5 | ≤2.00 | - | ≤0.024 | - | ≥63.0 | - |
| ≤34.0 |
| INCONEL800 | ≤0.10 | ≤1.00 | ≤1.50 | - | ≤0.015 | ≤23.0 | ≤35 | 4.0~5.0 | - | ≤0.75 |
