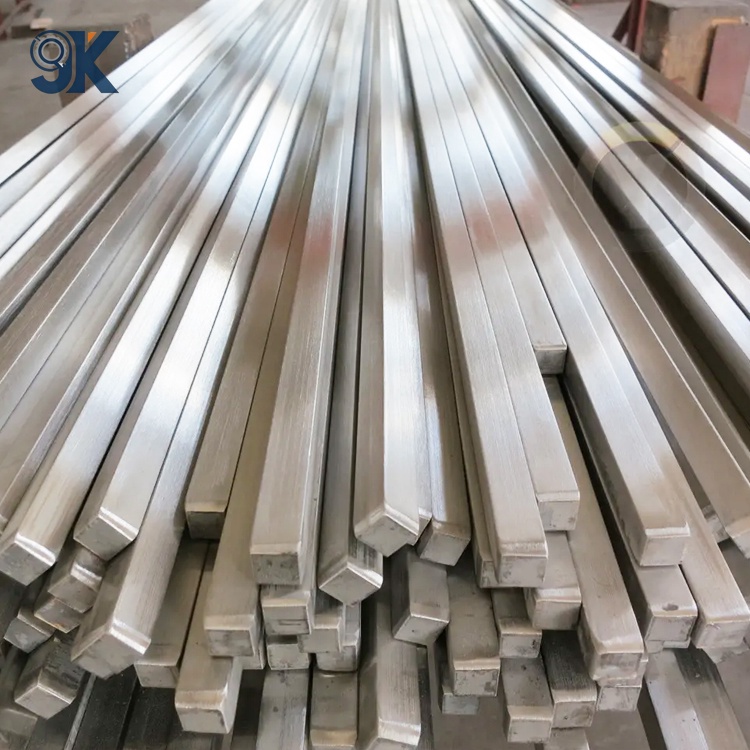

| Product Name | 316 Stainless Steel Square Bar |
| Standard | ASTM A484, UNS S31600 |
| Material | 316 |
| Technique | Cold drawn, Hot rolled, Cold rolled and Others. |
| Common Size Specs | Square side size: 4mm–100mm | Hot-selling sizes: 10mm,16mm,25mm,40mm Standard length: 6000mm; custom fixed-length cutting available Two production craft: Hot rolled rough bar / Cold drawn precision bright bar |
| Surface Treatment | Hot rolled pickled matte finish; Cold drawn bright peeled finish; Centerless ground ultra-smooth finish; Anti-rust oil coating |
| Available Material Tempers | Solution Annealed Soft State; Cold Worked Temper |
| Origin | China |
| Price Terms | EXW, FOB, CIF, CRF, CNF or others |
| Payment Term | TT, LC, Cash, Paypal, DP, DA, Western Union or Others. |
| Packaging | Bundle, PVC Bag, Nylon Belt, Cable Tie, Standard export seaworthy package or as Request. |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting and Others. |
| Tolerance | ±1% |
| MOQ | 5 tons |
| Exported to | UAE, Saudi Arabia; Germany, Poland; Vietnam, Malaysia |
| Core Strengths | Molybdenum alloy resists saltwater & acid pitting, far better than 304 stainless Stable non-magnetic austenitic structure maintains toughness in coastal environments Precise square dimensional tolerance cuts secondary machining waste Great weldability and ductility for complex industrial component shaping Certified raw material with full mill test reports for industrial engineering projects |
| Main Applications | Marine hardware blanks, chemical valve fittings, pharmaceutical equipment frames, coastal construction brackets, precision medical mechanical parts, desalination facility components. |
If you are looking for professional stainless steel rod suppliers from China, contact us now for further cooperation!
Composition of Stainless Steel
Steel is an alloy of iron and carbon. Stainless steels are steels containing at least 10.5% chromium, less than 1.2% carbon and other alloying elements. Stainless steel’s corrosion resistance and
mechanical properties can be further enhanced by adding other elements, such as nickel, molybdenum, titanium, niobium, manganese, etc.
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | - | 0.08 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 | 4.0~6.0 | - | ≤0.25 |
|
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | - |
|
|
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | - |
|
|
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - |
|
|
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - |
|
|
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | - |
|
|
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 |
|
|
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 |
|
|
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - |
|
|
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 |
| - |
|
|
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 |
|
|
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 |
|
|
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 |
| 1.0~2.0 |
| INCONEL028 | ≤0.03 | ≤1.00 | ≤2.50 | ≤0.030 | ≤0.030 | ≤28.0 | ≤34.0 | ≤4.0 |
| ≤1.4 |
| MONEL400 | ≤0.30 | ≤0.5 | ≤2.00 | - | ≤0.024 | - | ≥63.0 | - |
| ≤34.0 |
| INCONEL800 | ≤0.10 | ≤1.00 | ≤1.50 | - | ≤0.015 | ≤23.0 | ≤35 | 4.0~5.0 | - | ≤0.75 |
